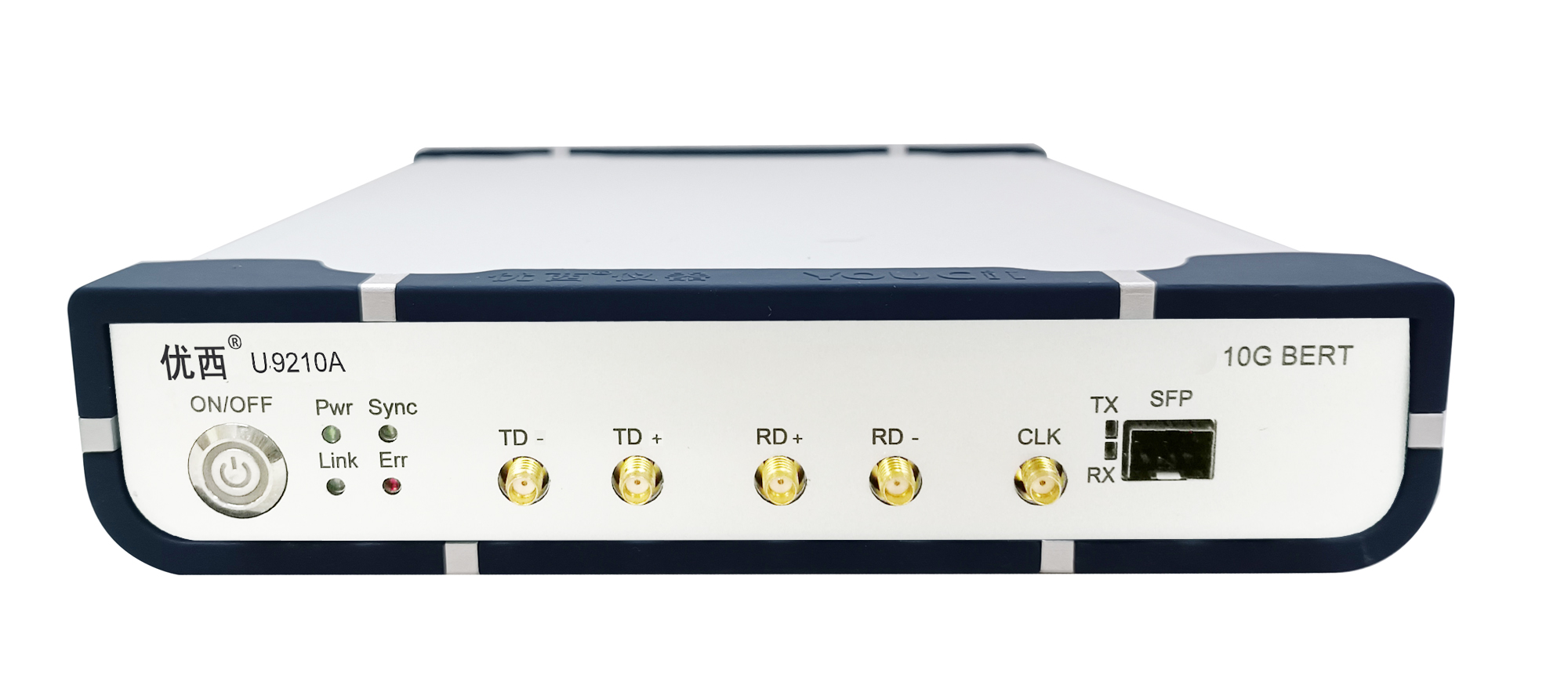

10G Full Rate BERT Support Code For PRBS7 / PRBS9 / PRBS15 / PRBS23 / PRBS31

Name: 10G Full Rate BERT Support Code For PRBS7 PRBS9 PRBS15 PRBS23 PRBS31
Brand: YOUCii
Price: 1 USD

Model Number : U9210A

Brand Name : YOUCii

Certification : CU,IOS

Place of Origin : China

MOQ : 1pcs

Price : negotiate a price

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 5 pcs+per month

Delivery Time : 20 work days

Packaging Details : Carton

Patterns : PRBS7,PRBS9,PRBS15,PRBS23,PRBxS31

Rise and fall times(20% to 80%) : 18~23 ps

Data signal input sensitivity (single-ended) : 0.1Vpp

Operating temperature : 10~50°C

Pattern Inversion : Supports signal inversion at the transmitter and receiver

Clock Out : 100~156.25 MHz

Contact Now

10G Full Rate BERT Support code For PRBS7/PRBS9/PRBS15/PRBS23/PRBS31

Performance character:

One SFP optical channel and One electric channel, Two channels synchronous input and output, Error Code testing can be independent.

Support for continuous error detection and timing error detection.

Support Full Rate from 622M up to 11.7Gbps；

Support code type: PRBS7 / PRBS 9 / PRBS 15 / PRBS 23 / PRBS 31

One channels low jitter clock output, the optical channel and the electric channel share one clock, the two channels clock synchronization.

Communication Mode USB HID or USB-COM.

Software function introduction

Data Rate:Setting the current data rate.
Data Pattern:Setting then current PRBS(Pattern).
Rx Mode: The equipment has two channels, optical channel and electrical channel, Select receive input is optical channel or electrical channel when receiving sensitivity test,SFP interface is optical channel,RX+ and RX- is electrical channel.
Data Invert:The electrical channel input signal polarity can be setting reversed,eg RX+ to TX- and RX- to Tx+.
Gating Time:Accumulation time setting for Accumulation BER measurement .
Start button:Start setting the parameters and testing the Instantanceous BER and Accumulation BER.
Refresh button: Manually refresh the accumulated BER.
USB Address box:Automatically enumerate all USB device addresses,select a USB address and press Connect button to connected the current device.
Instantaneous BER(bit error rate):refresh at 200ms intervals.

Accumulatio BER(bit error rate):accumulate the instantaneous bit error count and elapse time,Accumulatio BER = instantaneous bit error count/(elapse time*total bit count).

No.	Parameter	Min	Type	Max	Unit
1	Data rate	0.622	0.622,1.25,2.125,2.488,2.5,3.07,3.125,4.25, 5.0,6.144,6.25,7.5,8.5 ,9.953,10.00,10.3125,10.52,10.709, 11.09,11.32,11.7	11.7	Gbps
2	Patterns		PRBS7,PRBS9,PRBS15,PRBS23,PRBxS31
3	Rise and fall times(20% to 80%)		18	23	ps
4	Pattern Inversion		Supports signal inversion at the transmitter and receiver
5	Signal output amplitude (single-ended)	200	800	1000	mV
6	Data output jitter(RMS)		1.5(10.3125G under)		ps
7	Data input and output interface		Differential, AC Coupled, 50 Ohm Impedance, SMA
8	Clock Out	100	156.25	156.25	MHz
9	Data signal input sensitivity (single-ended)		0.1		Vpp
10	Data Output Eye Crossover	50	52	54	%
11	Operating temperature	10	25	50	°C
